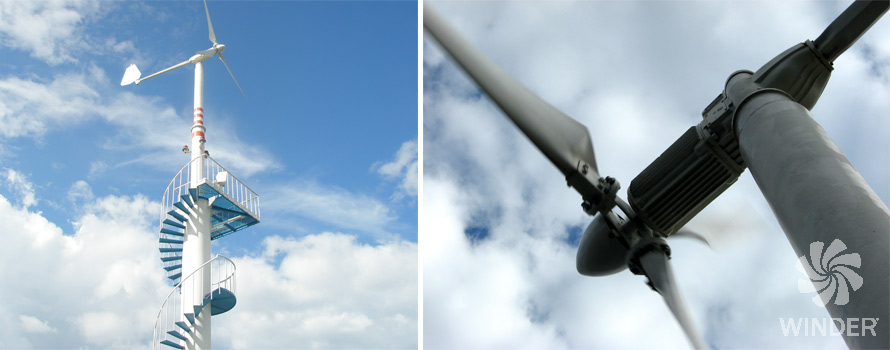

Wind turbine 6 kW (T60)
The Wind turbine T60, intended for use in areas with normal annual average wind speed. Windmill, with a nominal capacity of 6 kW, often set for Autonomous power supply of small and medium-sized objects, light industrial and warehouse space. Windmill installation of KZT60, can be used for a network system (developed by windmill electricity is sold to the grid by the "green tariff").
GeneratorType: three-phase synchronous PMG the Generator is a permanent magnet NdFeB the Settlement (nominal) power: 6 kW Maximum power: 7 kW rated voltage: 48/240V the Weight of generator: 275 kg |
Wheelrotor Diameter: 6,6 m the Length of the blade: 3,15 m the area of the rotor: 34,2 square meters Number of blades: 3 pieces blade Material: fiberglass (composite) TSR (Tip Speed Ratio): 7 |
speed RangeStarting speed: 2.5 m/s rated speed: 11 m/s operating range: 2.5 to 30 m/s can Withstand wind up to: 45 m/s the nominal rotation speed: 200 rpm./min |
Securitythe Type of cooling: IC0041 the sealing: IP54 Temperature range: -40 to +60 C the wind Protection: controlled by the tail |
Advanced
Standard mast: 12, 18 meters speed
it is Possible to manufacture masts up to 30 meters under the order.
Warranty wind turbine: 1 year.
you can extend the warranty to 10 years.
the noise Level directly under wind installation: 20-48 dB
lifespan: 20 years
