Wind turbine 5 kW (W6)

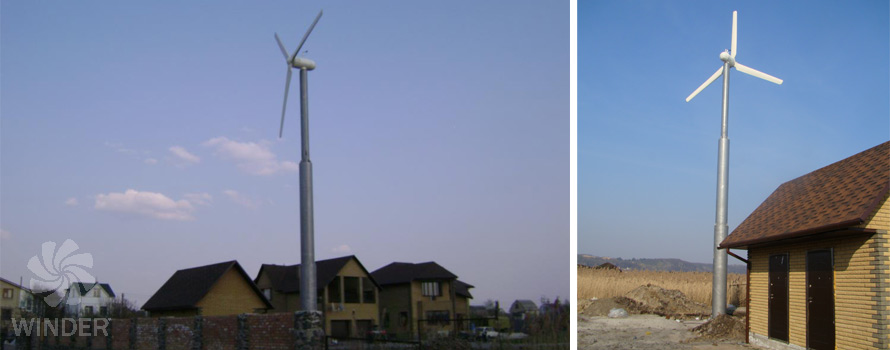

Windmill installation W6 is intended for use in areas with normal annual average wind speed.
|
Generator Type: three-phase synchronous PMG the Generator is a permanent magnet NdFeB the Settlement (nominal) power: 5 kW Maximum power: 6,65 kW nominal voltage: 240V the Weight of generator: 325 kg |

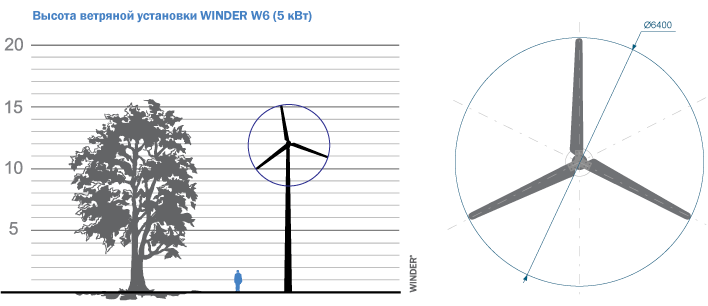

Wheel rotor Diameter: 6.4 meters the Length of blades: 3 meters the area of the rotor: 32,2 square meters Number of blades: 3 PCs blade Material: fiberglass (composite) TSR (Tip Speed Ratio): 7 |
|
speed Range Starting speed: 2 m/s rated speed: 10 m/s operating range: 3-25 m/s Stand wind up: 45 m/s rated rotation speed: 400 rpm./minutes |
Security the Type of cooling: IC0041 the sealing: IP54 Temperature range: -40 to +60 C the wind Protection: controlled by the tail |
Extras
Standard mast: 12 meters speed
it is Possible to manufacture masts up to 30 meters under the order.
Warranty wind turbine: 1 year.
you can extend the warranty to 10 years.
the noise Level directly under wind installation: 20-48 dB
lifespan: 20 years
basic configuration wind turbine
Generator with a rotating mechanism
the Blade
the Hub
Controller
packing list wind turbine for stand-alone systems
Generator with a rotating mechanism
the Blade
the Hub
Controller
the Mast is stepped
- Anchor bolts
Inverter
Battery
packing list wind turbine for network systems
Generator with a rotating mechanism
the Blade
the Hub
Controller
the Mast is stepped
- Anchor bolts
is the Network inverter
next steps
If You have a desire to see the system in person, contact the Manager on work with clients (контакты).
